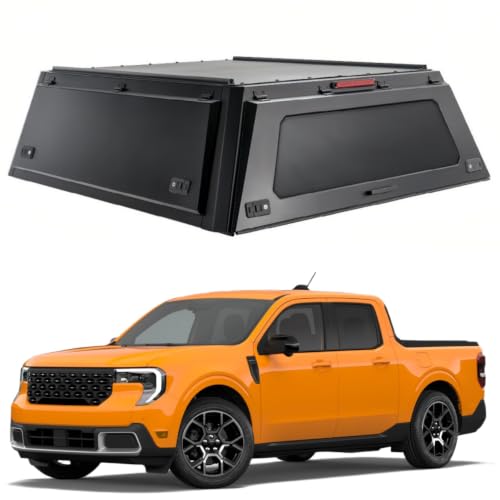

Ford Maverick Truck Cap – Official ARE Camper Shells
Our Maverick cap is engineered specifically for Ford’s compact pickup platform, designed to match the cab’s roofline and factory curves without gap or overhang. We mold each shell from fiberglass-reinforced composite panels for lasting durability, then finish it in OEM-matched paint so the cap reads as original equipment. The cap installs over a weatherstrip seal channel that runs the entire bed rail perimeter, keeping cargo dry during highway rain and dusty job sites alike.
Inside, you’ll find carpeted headliner panels and LED dome lighting as standard — no afterthought wiring harness. The rear door swings on stainless piano hinges and locks with a three-point rotary latch that ties into your Maverick’s factory key cylinder. We include clamp hardware calibrated for the Maverick’s stamped steel bed, so installation takes about an hour with basic hand tools and no drilling required.
Construction & fit details
Paint Matching & Finish Options
Every Maverick cap we ship can be painted to match your truck’s factory code — Cactus Gray, Alto Blue, Cyber Orange, or any other Ford color from the current palette. We spray a two-stage urethane system over gel-coated composite, then cure the finish in a controlled booth so the gloss level and orange peel texture align with OEM panels. If you prefer an unpainted textured finish, we offer matte black gel-coat as a no-charge alternative.
Clear-Coat Durability
Our clear-coat layer includes UV inhibitors that resist chalking and fading, even in desert sun or coastal salt air. The composite substrate underneath won’t rust or corrode, so paint adhesion stays intact for years without the edge-creep or blister issues common on older aluminum caps.
Bed Access & Locking Hardware
The rear door opens on a 180-degree arc, held by gas struts that won’t slam shut in wind. The three-point latch engages strikers at the top corners and bottom center, pulling the door tight against a continuous rubber seal. You can key the latch cylinder to match your Maverick’s ignition and door locks at most locksmiths, or we’ll include a universal tumbler with two keys if you prefer separate access.
Side windows slide on aluminum channels and lock with thumb latches from inside. Tinted glass is standard on our premium-tier caps; base models ship with fixed glass panels and optional sliding upgrades. All glass is DOT-rated tempered safety glass, the same spec used in automotive side windows.
Installation & Bed Rail Fit
The cap sits on a bulb-seal weatherstrip that compresses against the Maverick’s bed rail lip. We pre-drill mounting clamp holes in the cap’s underside flange at sixteen points around the perimeter, aligned with the Maverick’s rail geometry. Each clamp uses a threaded knob that tightens down through the flange and hooks under the bed rail inner ledge — no bolts pierce the truck’s sheet metal.
Installation takes two people about sixty minutes. You’ll align the front edge first, then walk the cap rearward until the weatherstrip seats evenly. Tighten clamps in a cross pattern to avoid twisting the frame. We include a printed torque spec card, but most installers just snug each clamp until the weatherstrip shows a consistent compression line all the way around. Many buyers who need enclosed storage across multiple vehicle types will reference the variety in our truck cap catalog when planning long-term fleet coverage, since clamp-mount installation transfers easily between trucks as you rotate stock.
More Custom-Fit Caps for Popular Compact Trucks
Rated 4.8 by verified buyers
Common Questions About the Maverick Cap
Yes, the cap is designed to fit all Ford Maverick cab configurations from 2022 forward. The bed length on the Maverick is standardized at 4.5 feet across trims, so our cap’s footprint and roofline contour work universally. If Ford releases a longer bed option in future model years, we’ll develop a separate cap SKU for that variant.
We offer factory color-match service at the time of order, which we handle in-house before shipping. If you already received an unpainted cap, most automotive body shops can spray it using your truck’s paint code. The gel-coat surface accepts urethane paint systems without additional primer, but professional prep and clear-coat application will yield the best gloss match.
The cap replaces the tonneau entirely — it sits directly on the bed rails where a tonneau would mount. You’ll need to remove your existing cover before installing the cap. If you want occasional open-bed use, the cap can be unbolted and lifted off, though that’s a two-person job and takes about thirty minutes each way.
The cap weighs approximately 180 pounds fully assembled with glass and hardware. That weight counts against your Maverick’s payload capacity, which ranges from 1,500 to 1,200 pounds depending on trim and configuration. For most users, the cap’s weight leaves plenty of room for cargo, tools, or camping gear without approaching payload limits.
The sliding side windows open partially for airflow, but they don’t remove from the frame. If you need full open-side access, we offer a ranch-hand style cap with no side glass as a custom order option. That model uses mesh screens in place of windows and is popular with landscapers and contractors who prioritize ventilation over security.
The standard cap does not include integrated roof rail channels. Adding an aftermarket roof rack requires drilling through the cap’s roof panel, which voids the structural warranty. If you know you’ll need roof cargo capacity, let us know at order time — we can factory-install reinforced mounting plates and rail channels for an additional charge before the cap ships.
Interior clearance measures 18 inches at the front edge (just behind the cab) and tapers to 16 inches at the rear door header, following the cap’s aerodynamic roofline. That’s tall enough for toolboxes, coolers, or stacked storage bins, but not sufficient for standing or sitting upright. If you need more vertical space, our high-rise cap model adds four inches of headroom with a raised center section.
