Canvas Truck Topper | Lightweight Soft-Top Bed Cover
Our canvas truck topper delivers weather-sealed bed protection without the weight or permanence of hard shells. The marine-grade canvas and powder-coated aluminum frame system combine to create a secure, removable cover that installs in minutes without drilling.
Designed for truck owners who need versatility, this soft-top bed cover folds down for over-cab storage when you're hauling tall cargo. The reinforced stitching and heavy-duty zippers withstand years of daily use while maintaining a clean, professional appearance on the job site or weekend trail.
Canvas topper specs
Canvas Construction & Weather Protection
We manufacture each canvas truck topper with commercial-grade 18 oz marine canvas that resists UV degradation, mildew, and water penetration. The triple-layer construction includes a weather-resistant outer shell, waterproof barrier membrane, and soft interior liner that won’t scratch cargo.
Reinforced box-stitch seams at all stress points prevent tearing under load. The powder-coated aluminum bow frame system distributes tension evenly across the canvas, eliminating sagging and maintaining clearance for taller cargo. Corner radius sections are pre-formed to match truck bed contours for a gap-free seal.
Installation & Mounting System
Quick-Clamp Frame System
Our tool-free installation system uses spring-loaded C-clamps that secure to factory bed rails or most aftermarket track systems. The clamps feature rubberized contact pads that grip without marring bed rail finish. You can install or remove the complete topper in under three minutes without assistance.
The aluminum bow frame sections connect via indexed push-pin joints that lock in place with audible clicks. Four adjustable tension straps with cam buckles allow you to dial in the perfect canvas tightness for your load and driving conditions.
Storage & Cargo Access

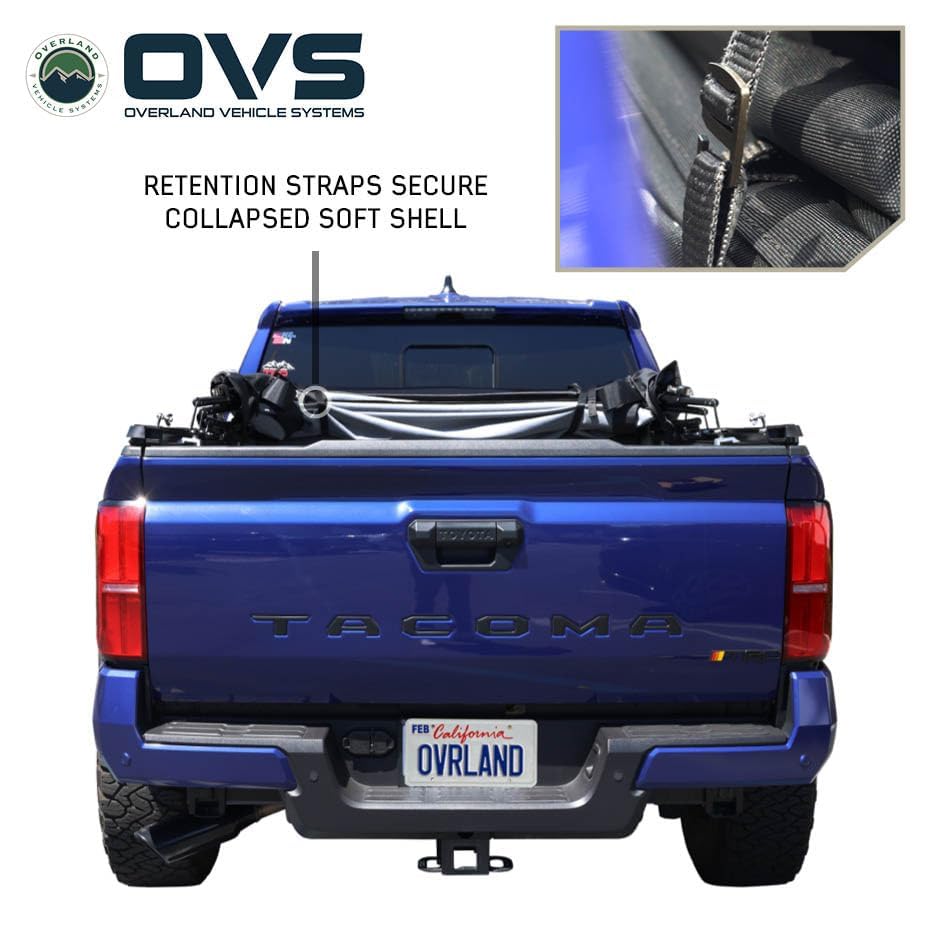

The bow frame design allows the entire canvas section to fold forward and rest against the cab when you need to haul cargo taller than the topper height. Integrated hold-open straps secure the folded canvas to prevent wind catch at highway speeds.
For full bed access, remove the complete topper by releasing six quick-clamps and lifting straight up. The collapsed frame and canvas roll together into a 48-inch bundle that stores in a garage corner or behind the truck cab.
More Soft-Top & Hard Shell Bed Covers
Rated 4.8 by verified buyers
Canvas Truck Topper Questions
Our canvas truck topper uses marine-grade fabric with a waterproof barrier membrane and heat-sealed seams that provide equivalent weather protection to rigid caps in normal rain and snow conditions. The rear zipper panel includes a storm flap overlay that channels water away from the opening.
In extreme pressure-wash conditions or prolonged submersion, hard shells offer slightly better water resistance. For typical driving rain, highway speeds, and overnight weather exposure, the canvas construction keeps cargo completely dry. We recommend reapplying waterproofing spray annually to maintain maximum protection.
Yes, this canvas truck topper installs over factory spray-in bedliners, drop-in liners, and bare truck beds without modification. The quick-clamp mounting system secures to factory bed rails or most aftermarket track systems regardless of bed surface.
The rubberized clamp pads grip securely without damaging bedliner finish. If you have an over-rail bedliner that covers the mounting surface, you may need universal track adapters, which we can recommend based on your specific liner model.
The complete canvas truck topper with aluminum frame weighs approximately 45-55 pounds depending on bed length, compared to 150-250 pounds for equivalent fiberglass hard shells. The lightweight construction improves fuel economy and allows one person to install or remove the topper without assistance.
The reduced weight also means less stress on suspension components and easier handling during storage. Despite the light weight, the marine-grade canvas and powder-coated aluminum frame provide comparable durability to much heavier rigid toppers.
Our canvas truck topper clamp system is compatible with most factory bed rails and popular aftermarket track systems including Yakima, Thule, and RCI bed rail systems. The C-clamps adjust to accommodate rail widths from 1.5 to 3 inches.
If you currently have a tonneau cover installed, you'll need to remove it before installing the canvas topper, as both systems use the same mounting rails. The topper installation does not permanently alter your bed rails, so you can switch between tonneau and canvas topper as needed.
To fold the canvas truck topper forward, release the rear tension straps and unclip the two rear bow sections from the bed rail clamps. The canvas and remaining front bows fold as a single unit toward the cab, where integrated hold-open straps secure the bundle against the cab wall.
The folded topper adds approximately 18 inches of forward protrusion but clears the cab roof. This configuration works well for hauling dirt bikes, appliances, lumber stood on edge, and other cargo exceeding standard topper height. The fold process takes about 60 seconds and requires no tools.
Interior clearance under the canvas truck topper ranges from 24 inches at the front bow to 28 inches at the rear bow, measured from the truck bed floor. The arched bow design maximizes usable cargo space while maintaining aerodynamic profile.
This height accommodates toolboxes, coolers, camping gear, and most commercial equipment. If you regularly haul cargo requiring more than 28 inches of vertical clearance, consider folding the canvas forward or exploring our rigid high-top truck cap options.
The marine-grade 18 oz canvas fabric is UV-stabilized for 10+ years of daily sun exposure before significant degradation occurs. Most customers see 8-12 years of service life depending on climate and maintenance frequency.
The canvas will show gradual fading before structural wear becomes an issue. Replacement canvas sections are available if the fabric wears before the aluminum frame, which typically lasts 15+ years. Annual application of canvas waterproofing spray extends fabric life and maintains water repellency throughout the topper's service life.
